USING FIRESTIK II ANTENNAS ON THE 10 METER BAND

28.300MHz TO 28.500MHz

Compliments of Firestik® Antenna Company Technical Support Team

Copyright © 1996 Firestik® Antenna Company

Both the FS3, 3 foot and FS4, 4 foot Firestik II patented tunable tip antennas can be used on the 28.3 - 28.5MHz 10 meter frequency band. To do so, the installer will have to decide where he wants to center the antenna. Upon doing so, refer to the chart and set the antenna accordingly.

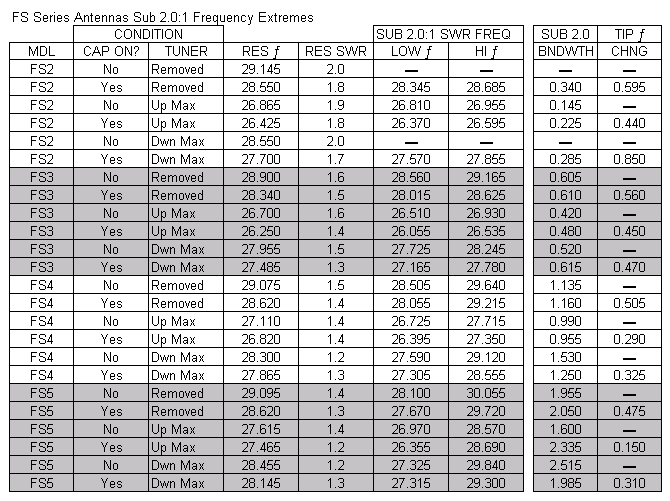

FS3 CONDITION LOW HIGH
Plastic tip discarded and:
     Tuning screw in max. up position   26.920 27.390
     Tuning screw in max. down position 28.160 28.660
Plastic tip in place and:
     Tuning screw in max. up position 26.470 26.970
     Tuning screw in max. down position 27.650 28.110

FS4 CONDITION LOW HIGH
Plastic tip discarded and:
     Tuning screw in max. up position    26.980 27.480
     Tuning screw in max. down position   28.400 28.920
Plastic tip in place and:
     Tuning screw in max. up position   26.640 26.965
     Tuning screw in max. down position   27.840 28.530

NOTES:

  1. Measurements taken at remote sight with lab quality equipment and resonant coaxial cable. All high-low frequencies are indicated at the point where the SWR reached, but did not exceed, 1.5:1.
  2. The tuning screw has a maximum travel of 7/8" (2.2cm).
  3. All low frequency measurements were taken with the screw at 3/4" (1.9cm) out.
